AUTOMATIC REEL SILO

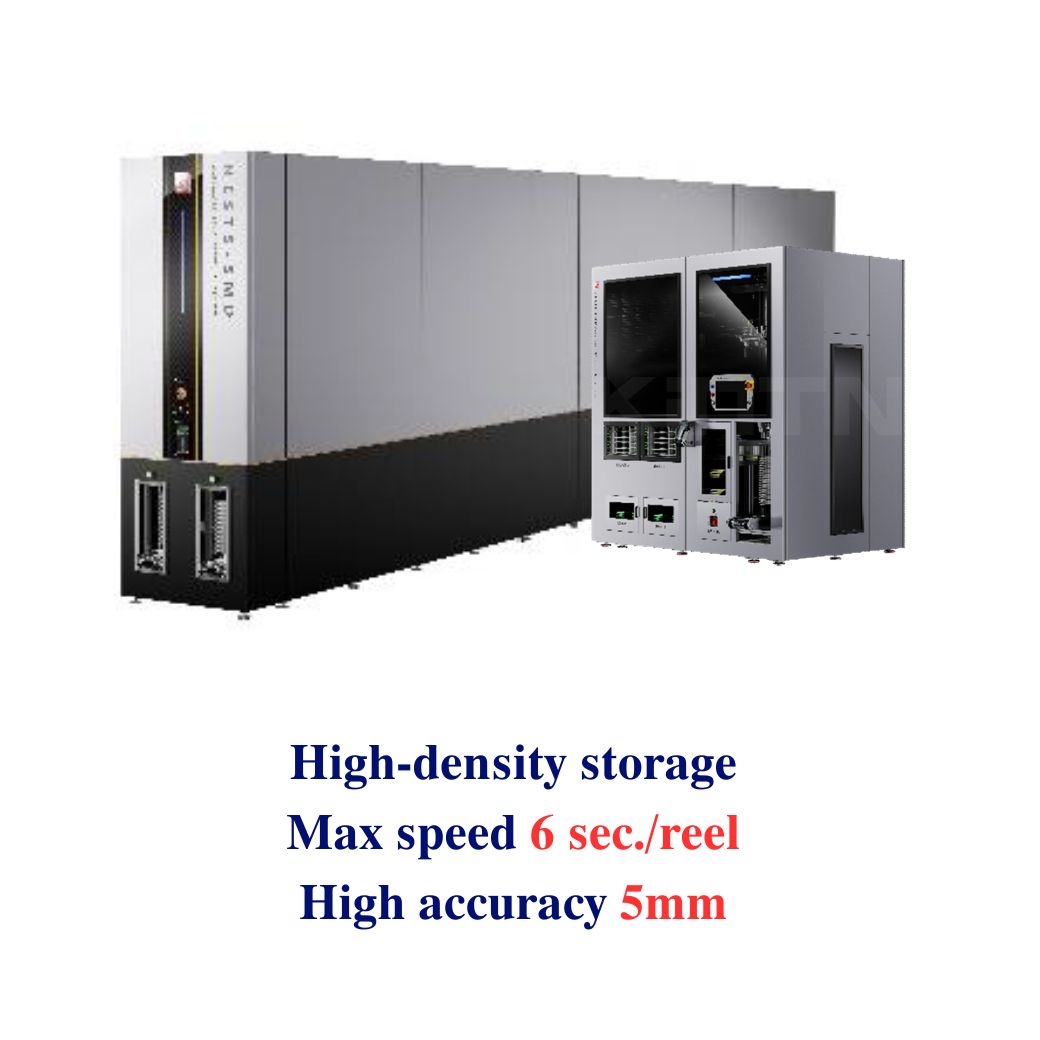

Reel Silo Solution
The automatic reel silo is an automatic warehouse used to store reels.
The reel silo is modular and can be designed according to the specifications and quantity of the reels and the on-site layout.
Supports Mixed storage of 7”, 13”, and 15”SMD reels, with a throughput capacity of 400~800 reels/hour.
If there are only 7”reels with a single depth storage, it can support up to 600~1200 reels/hour
Compatible with skewer cart or AGV/AMR, customers can upgrade according to actual needs.
Inbound:
- Reels need to be affixed with a unique code before storage.
- Entrance always stores an empty skewer.
Outbound:
- Reel outbound can be performed by system assigned tasks or manually operation.
- Compatible with skewer cart or AGV /AMR, customers can upgrade according to actual needs.
Speed:
- Single gripper stacker: 12 sec/reels
- Double gripper stacker: 6 sec/reels
Storage bin type :
The single-deep storage (only 7” reels) silo can be equipped with a double-gripper stacker to store 2 reels at the same time, which is the most efficient!
Double deep storage silo with single gripper stacker, capable of mixed storage of 7" & 13" & 15" reels.
Specification
Features
LABELING MACHINE

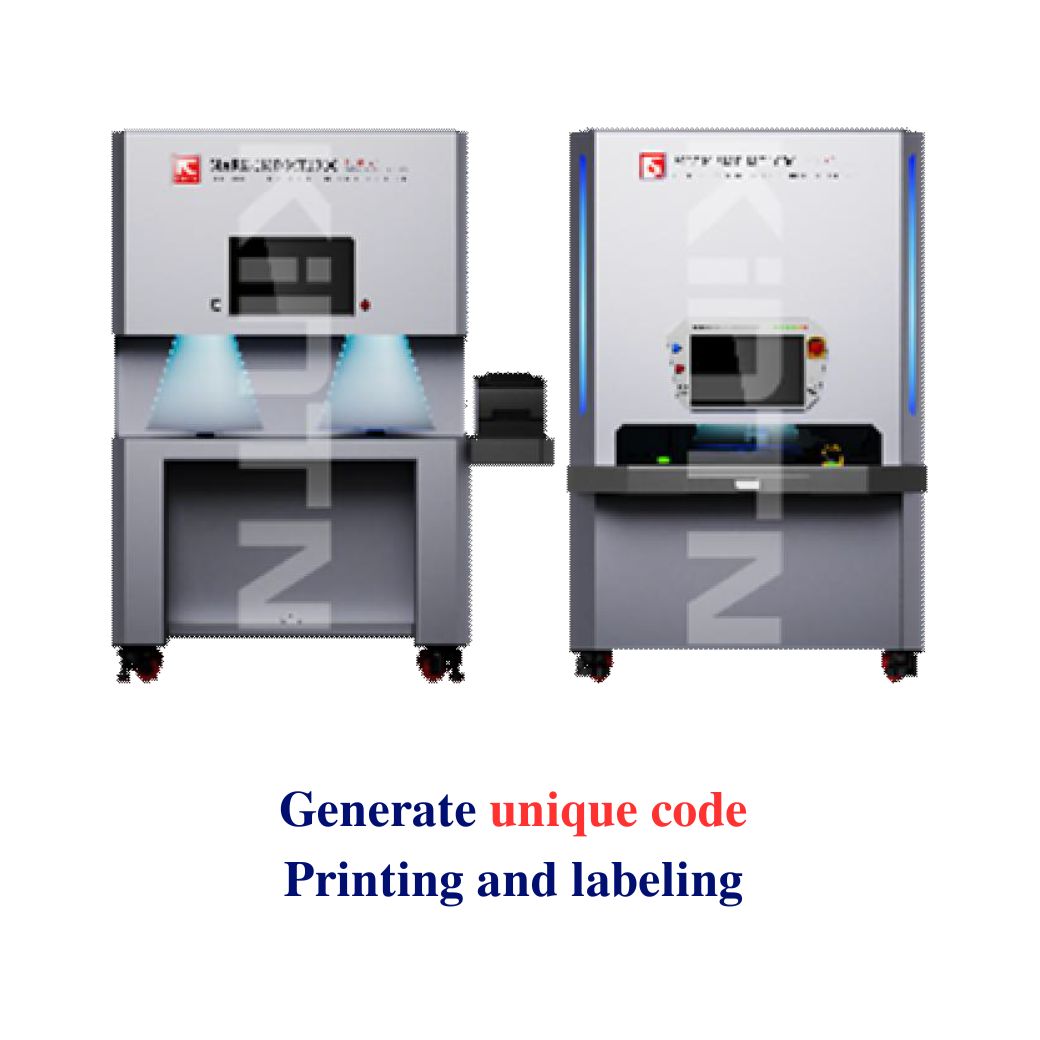

Automatic labeling machine
Specification
Mixed labeling machine (support 7&13&15inch reels)
LWH：2900*1300*1800
7-inch reel storage cache （12mm） ：320
7-inch reel outbound cache (12mm）：320
Efficiency: 500 reels /h
Features
Labeling can be done in batches to avoid people
waiting on the side
Compatible with skewer cart or AGV /AMR
customers can upgrade according to actual needs.
SMART CABINET

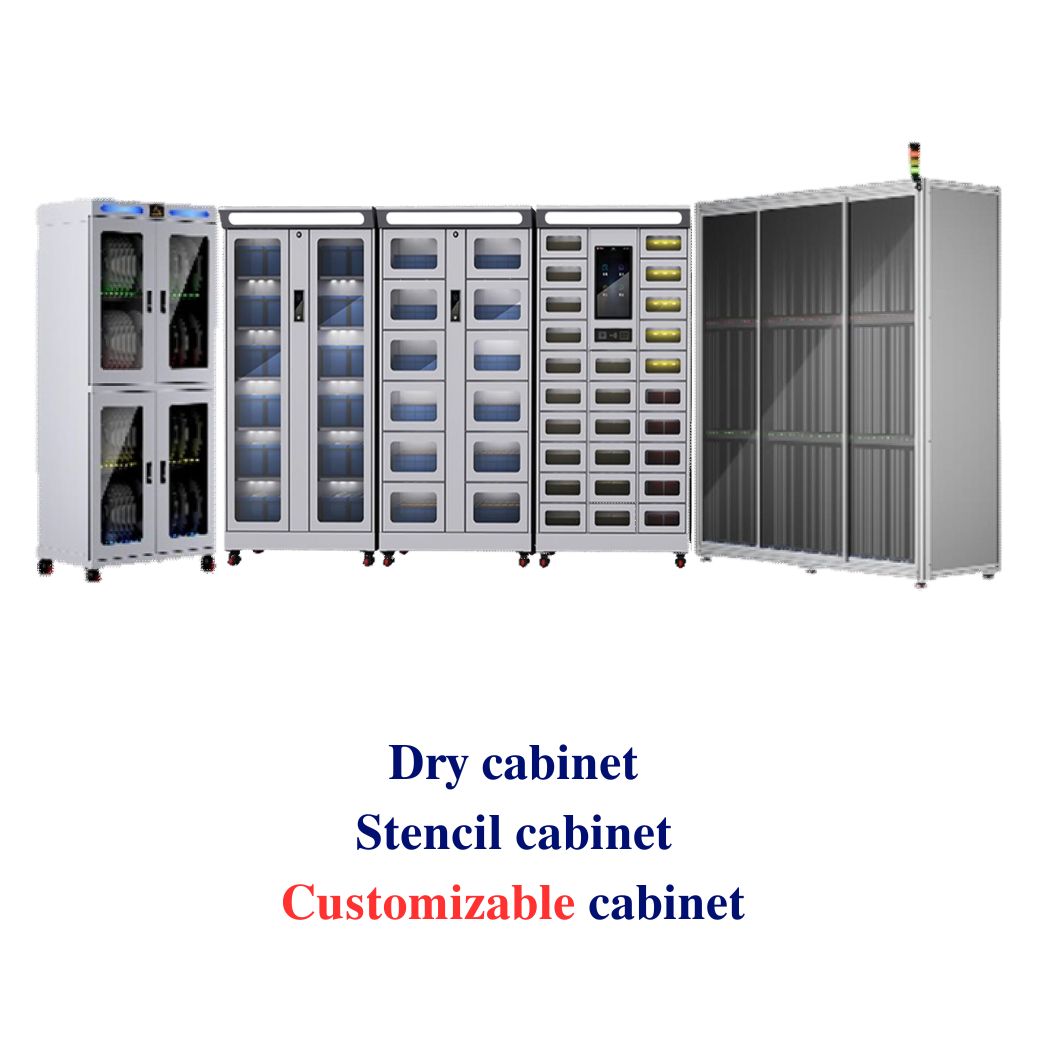

Automatic reel cabinet solution
Inbound:
Reels need to be affixed with a unique code before storage.
Entrance port always stores an empty skewer.
Outbound:
Reel outbound can be performed by system assigned tasks or manually operation.
Compatible with skewer cart or AGV /AMR, customers can upgrade according to actual needs.
---------------------------
The automatic reel cabinet is an automatic warehouse used to store reels beside the SMT production line.
The reel cabinet is a standard product that can be delivered to the site without installation.
Supports Mixed storage of 7”, 13”, and 15”SMD reels, with a throughput capacity of 400~800 reels/hour.
Models with storage capacity ranging from 1280 to 3400 reels are available.
Compatible with skewer cart or AGV/AMR, customers can upgrade according to actual needs.
Can be modified to support drying function. (Within 10%RH)
Specification
Features
Option

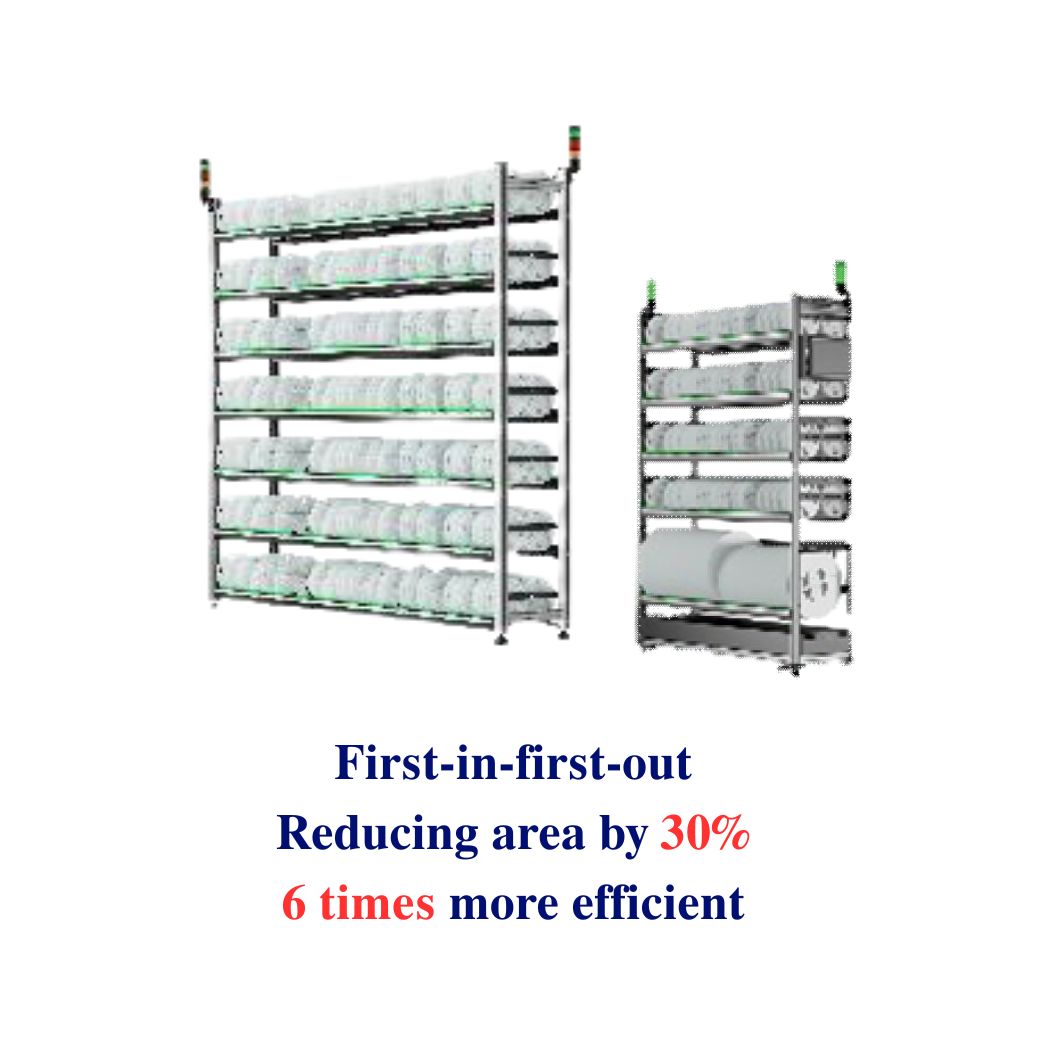

SMART REEL RACK
S M A R T
R E E L R A C K
Inbound Process :
Find any empty storage bin to store. Binding by scanning code of reel and code of
location. The incoming quantity information can be adjusted using PDA.
Outbound Process :
Multiple people can carry out outbound operations at the same time.
Smart reel cart can be used for SMT line turnover management
---------------------------------------------------------------------------------------
S E N S O R
R E E L R A C K
Inbound Process :
After the PDA scans the rack QR code, and reel can be stored any storage bin and the system will automatically recognize it.
Outbound Process :
Can automatically identify the reels taken out.
Error operation alarm :
When there is no task, it will automatically alarm after taking out the reel!
