ER7Pro Product Details & Order
Order Information

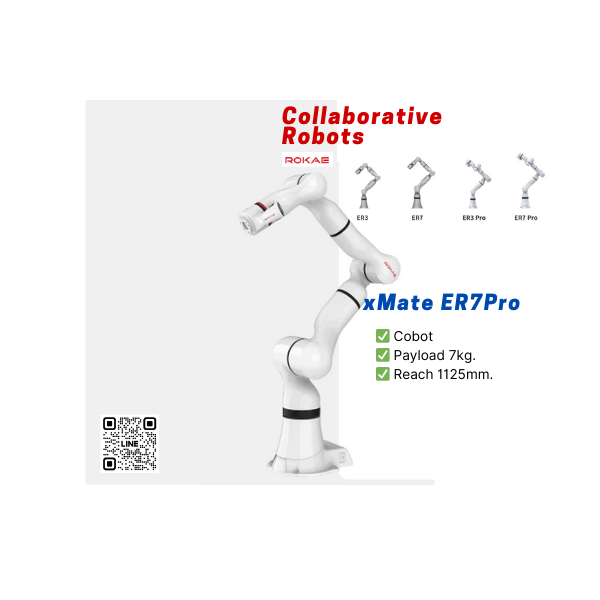

ER7Pro
Payload | 7 kg | Weight (built-in control cabinet) | About 29 kg | Reach | 1125 mm | |
DOF | 7 | IP Rating | IP54 | Power Supply | 90-264VAC, 47-63Hz/48VDC | |
Repeatablity | ±0.03 mm | Operating Temperature | 0℃~45°C | Force Sensing (tool flange) | Force x-y-z | Torque x-y-z |
Maximum Speed at Tool End | ≤2.5 m/s | Adjustable Range of Cartesian Stiffness | 0~3000 N/m | Relative Accuracy of Force Control | 0.5 N | 0.1 Nm |
Mounting Method | Mounting at any angle | 0~300 Nm/rad | ||||
Motion Parameters | Axis | Range of Motion | Maximum Speed | |||
Axis1 | ±170° | 90°/s | ||||
Axis2 | ±120° | 90°/s | ||||
Axis3 | ±170° | 120°/s | ||||
Axis4 | ±120° | 120°/s | ||||
Axis5 | ±170° | 120°/s | ||||
| Axis6 | ±120° | 120°/s | ||||
| Axis7 | ±360° | 120°/s | ||||
