Model： LTC-0630F Product Details & Order
Order Information

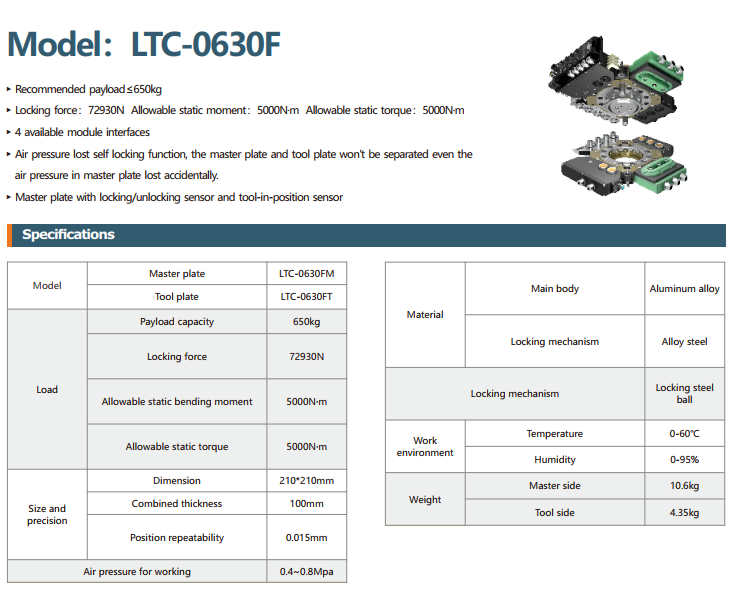

Model： LTC-0630F
▶ Recommended payload≤650kg
▶ Locking force：72930N Allowable static moment：5000Nm Allowable static torque：5000Nm
▶ 4 available module interfaces
▶ Air pressure lost self locking function, the master plate and tool plate won’t be separated even the
air pressure in master plate lost accidentally.
▶ Master plate with locking/unlocking sensor and tool-in-position sensor
