Industrial LoRa/LoRaWAN
LoRaWAN® Enabled 1RS-485 I/O Module : WISE-2200-MNA
LoRaWAN® Enabled 1RS-485 I/O Module
- LoRaWAN® wireless technology with less interference with high penetration rate capability
- Support Modbus/RTU communication protocol
- Support max. 128 address and 30 rule settings
- 5-50VDC wide input power design
- Compact design, suitable for plug and play applications
- Industrial design concept for different kinds of environment
Specification
Wireless Communication
- Standard (Technology) : LoRaWAN
- Frequency Band : US 902~928 (MHz), AU 915~928 (MHz), AS 919~924 (MHz), TH 920~925 (MHz), JP 920~928 (MHz)
I/O Interface
- Serial Ports : 1 x RS-485
- Power Requirement : 10~30 VDC
Environment
- Operating Temperature : -25~70 °C (-13~158 °F)
- Storage Temperature : -40~85 °C (-40~185 °F)
Mechanical
- Dimension (W x H x D) : 71 x 52 x 30 mm (without Antenna)

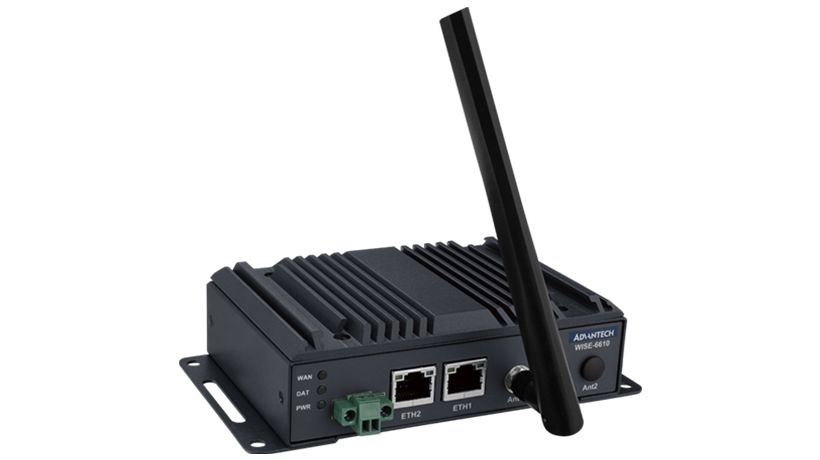

LoRaWAN® Enabled Gateway : WISE-6610-NB
LoRaWAN® Enabled Gateway
- Latest Semtech SX1302 gateway chipset solution, it doubles the packet processing speed
- Embedded Network Server for LoRaWAN® for both private and public system application
- Compatible with Multiple Network Servers like Actility, The Things Network, Chirpstack, AWS, etc
- Supports Modbus/TCP, MQTT, BACnet(with -EL P/N) and OPCUA (with -EL P/N) protocols
- Build-in Node-Red, LoRaWAN network server and Edgelink software (with -EL P/N) packages
- Global LoRaWAN® Frequency Plans
- DIN rail and wall mounting design
- Backhaul 4G (by additional adapter)
- Embedded LoRaWAN Network Server supports max 500 nodes connections
Specification
Wireless Communication
- Standard (Technology) : LoRaWAN
Hardware
- LAN : 2 x 10/100 Mbps
- Power Requirement : 10~30 VDC
Environment
- Operating Temperature : -40~75 °C (-40~167 °F)
- Storage Temperature : -40~85 °C (-40~185 °F)
