Smart Cold Chain

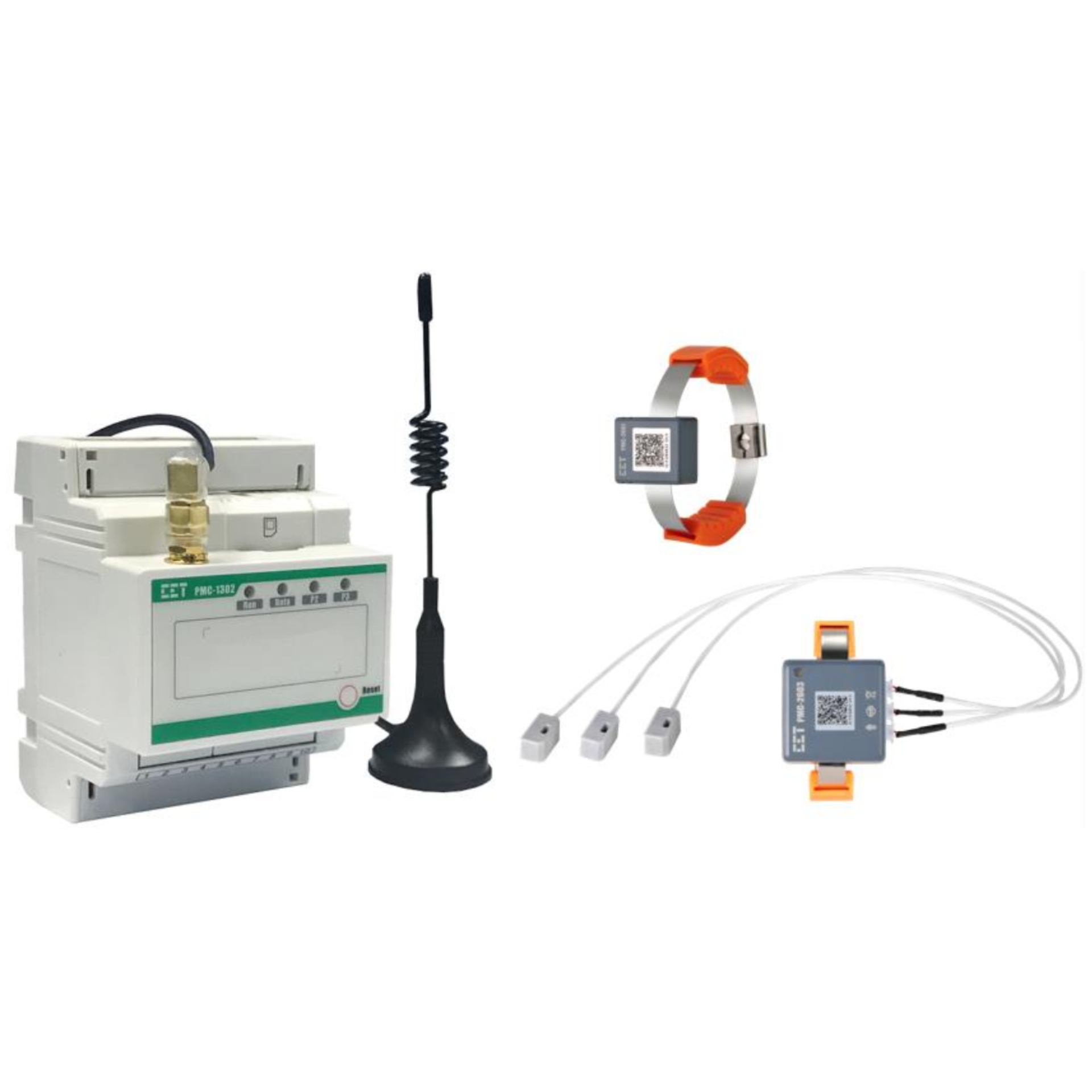

PMC-1302-3 : Industrial Ethernet Serial/LoRa Gateway
Industrial Ethernet Serial/LoRa Gateway
- Support Ethernet, RS-485 and LoRa communication
- Support Modbus TCP to Modbus RTU Gateway
- Support Transparent Gateway function
- Support up to 80 x PMC-2601/PMC-2603 sensors
- Built-in Web Server for monitoring and configuration
- Support Temperature & Humidity data monitoring
- DIN-Rail mounting for industrial applications
Specification
Communication
- Ethernet : 1 x 10/100BaseT
- Serial Port : 2 x RS-485
- Protocol : TCP, UDP, HTTP
- LoRa Frequency : 860~935 MHz
Sensor Support
- Supported Sensor : PMC-2601 / PMC-2603
- Maximum : 80 Sensors
Power Supply
- 95~250 VAC/DC
- Optional 20~60 VDC
Environment
- Operating Temperature : -25~70 °C
- Storage Temperature : -40~85 °C
Mechanical
- Dimension : 72 x 65 x 95 mm
.jpg)
PMC-350-C 3-Phase LoRaWAN Energy Meter
3-Phase LoRaWAN Energy Meter
- LoRaWAN wireless communication for energy monitoring
- Support RS-485 and Modbus RTU communication
- Support 3-phase voltage, current, power and energy measurement
- Support power quality monitoring and harmonics up to 31st
- Support optional Digital I/O and temperature monitoring
- DIN-Rail mounting for industrial applications
Specification
Communication
- Wireless : LoRaWAN
- Serial Port : 1 x RS-485
- Protocol : Modbus RTU
Measurement
- Voltage : 20~277 VLN / 35~480 VLL
- Frequency : 45~65 Hz
- Energy Accuracy : Class 0.5S
Environment
- Operating Temperature : -25~70 °C
- Storage Temperature : -40~85 °C
Mechanical
- Dimension : 72 x 70 x 95 mm

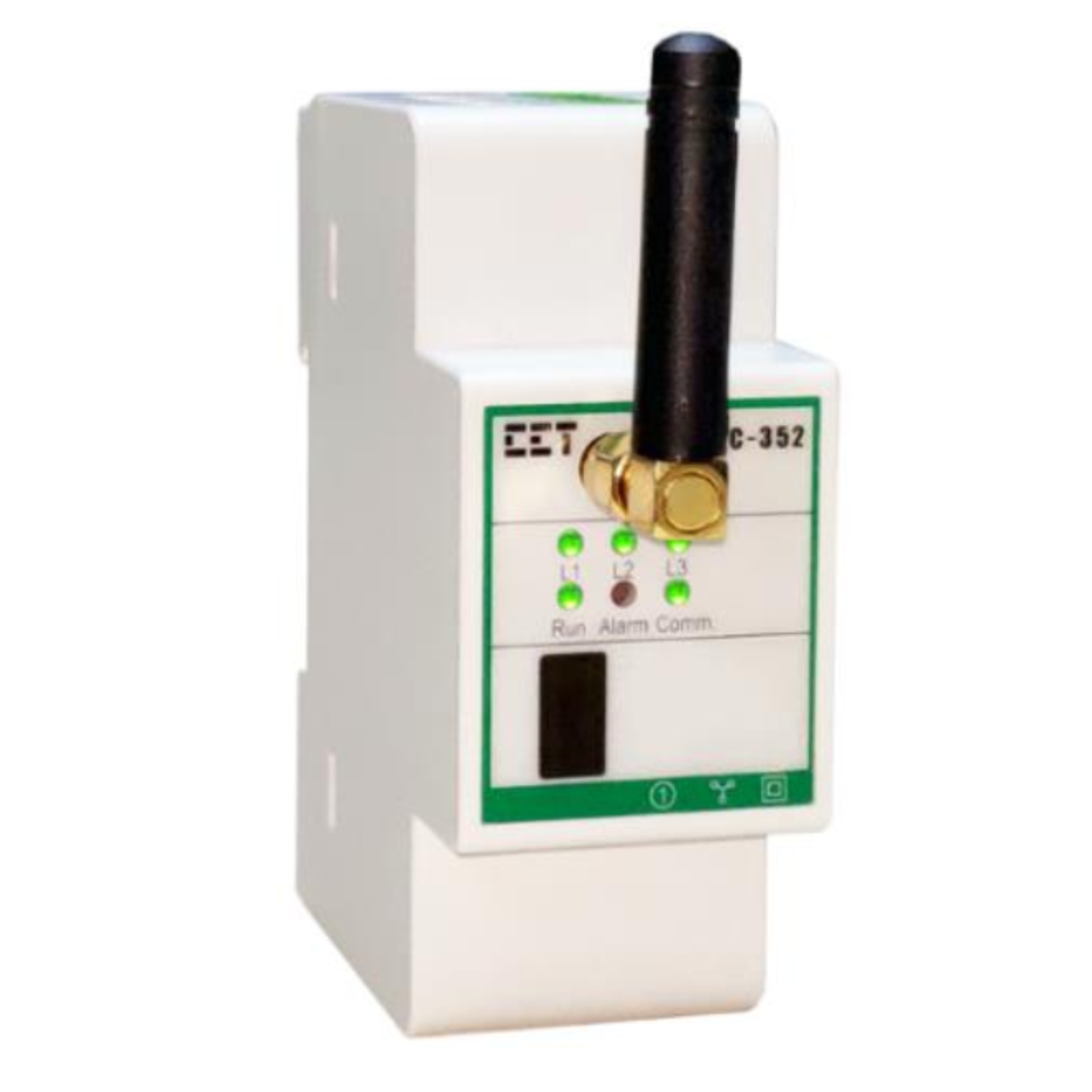

PMC-352-C : 3-Phase LoRa Energy Meter
3-Phase LoRa Energy Meter
- LoRa wireless communication for energy monitoring
- Support RS-485 and Modbus RTU communication
- Support 3-phase voltage, current, power and energy measurement
- Built-in 4 x NTC inputs for temperature monitoring
- Support 3 x Digital Inputs
- Compact DIN-Rail design for industrial applications
Specification
Communication
- Wireless : LoRa
- Serial Port : 1 x RS-485
- Protocol : Modbus RTU
I/O Interface
- Digital Input : 3 x DI
- Temperature Input : 4 x NTC
Measurement
- Frequency : 45~65 Hz
- Energy Accuracy : Class 1
Environment
- Operating Temperature : -25~70 °C
- Storage Temperature : -40~85 °C
Mechanical
- Dimension : 36 x 65 x 90 mm

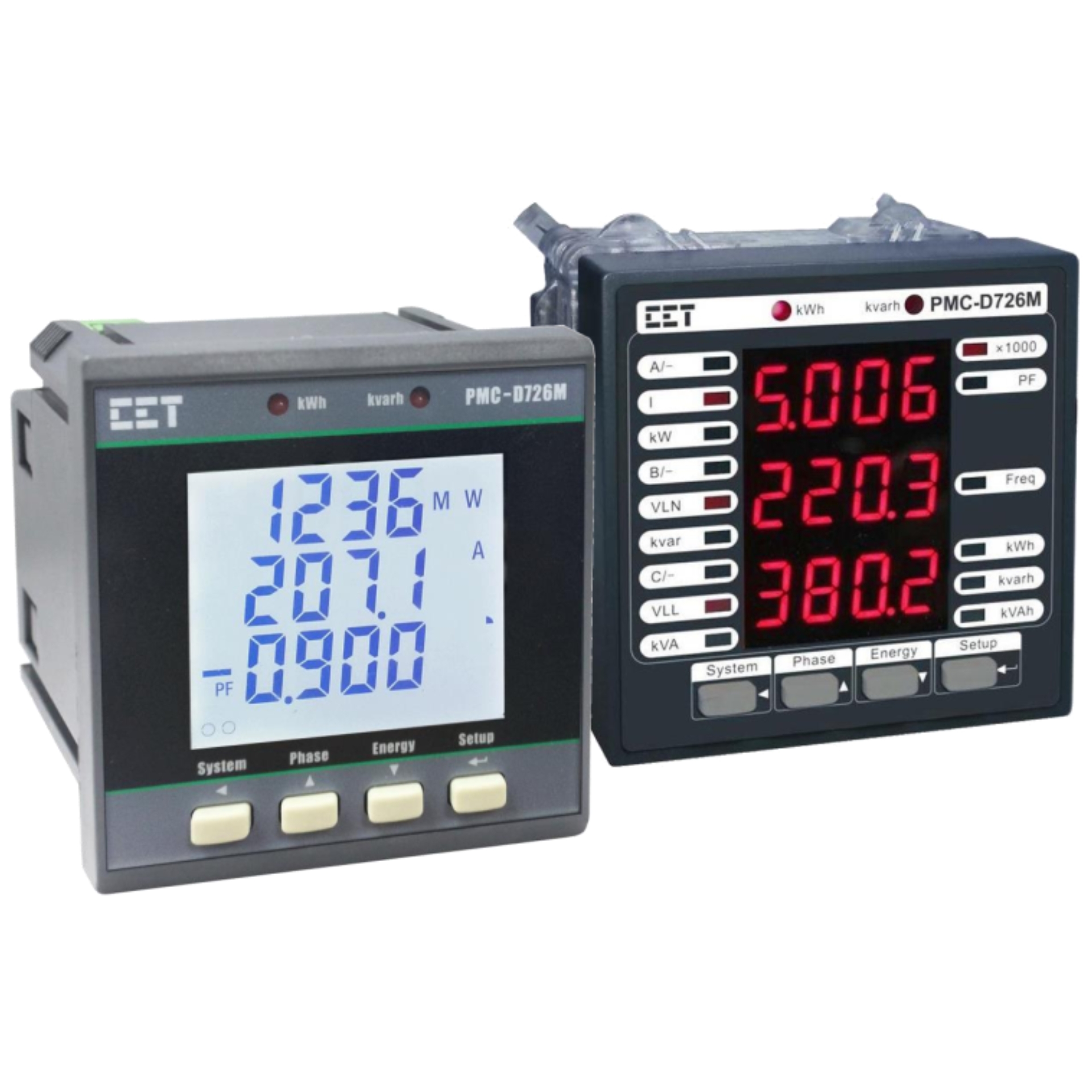

PMC-D726M : DIN72 3-Phase Digital Multifunction Meter
DIN72 3-Phase Digital Multifunction Meter
- True RMS multifunction measurement
- Support 3-phase voltage, current, power and energy measurement
- Support THD and harmonics up to 31st
- Support RS-485 and Modbus RTU communication
- Support optional Digital I/O and Analog Output
- Large backlit LCD or LED display
- Suitable for industrial and energy monitoring applications
Specification
Communication
- Serial Port : 1 x RS-485
- Protocol : Modbus RTU
I/O Interface
- Digital Input : 2 x DI
- Digital Output : 2 x DO
- Analog Output : Optional 0/4~20 mA
Measurement
- Frequency : 45~65 Hz
- Energy Accuracy : Class 1
Environment
- Operating Temperature : -25~70 °C
- Storage Temperature : -40~85 °C
Mechanical
- Dimension : 72 x 72 mm

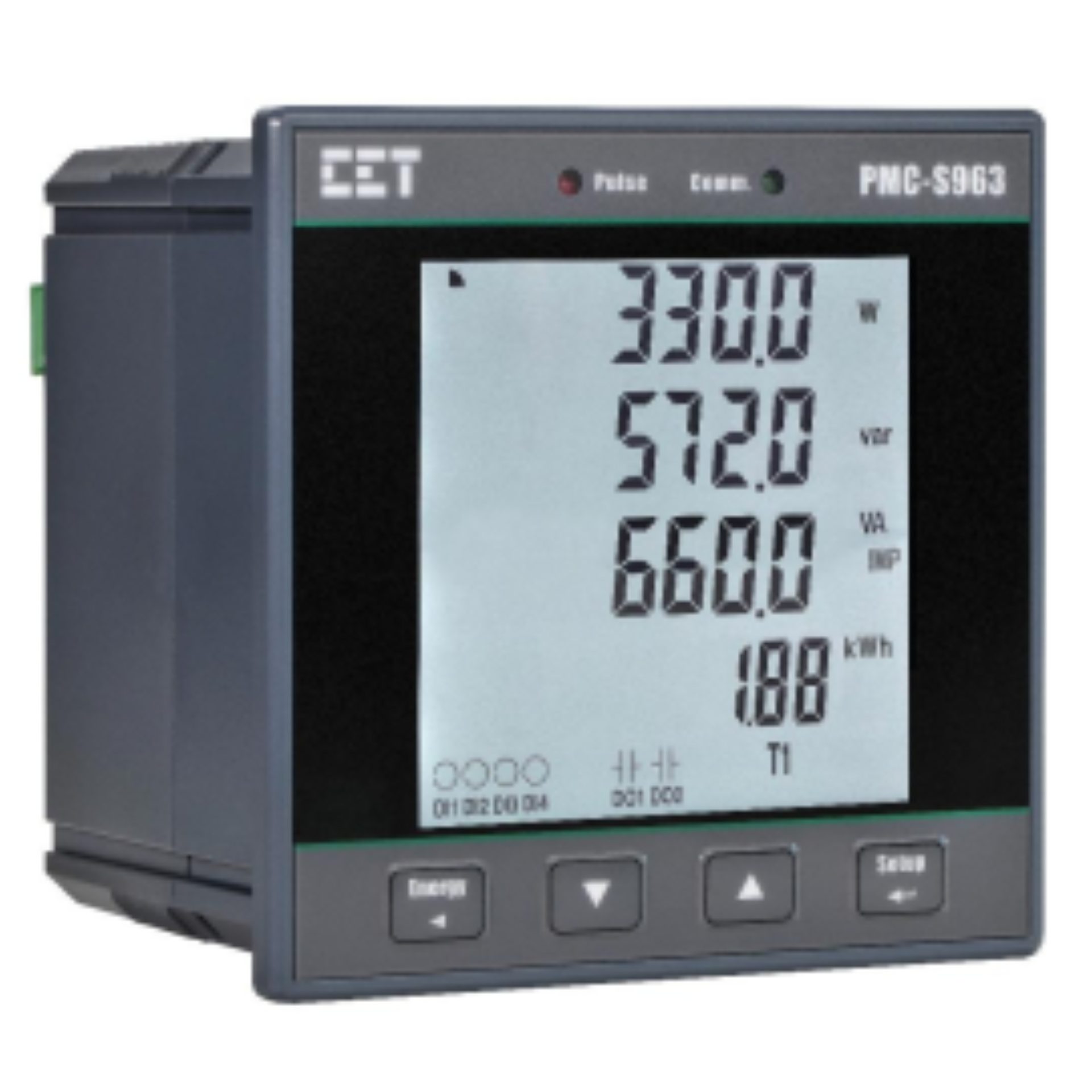

PMC-S963-C : Intelligent Multifunction Meter
Intelligent Multifunction Meter
- IEC 62053-22 Class 0.5S energy measurement
- True RMS measurement with 64 Samples/Cycle
- Support THD and harmonics up to 31st
- Support RS-485 and Modbus RTU communication
- Large backlit 7-Segment LCD display
- Support Digital Input, Digital Output and Analog Output
- IP65 enclosure for industrial applications
Specification
Communication
- Serial Port : 1 x RS-485
- Protocol : Modbus RTU
- Baud Rate : Up to 38,400 bps
I/O Interface
- Digital Input : 4 x DI
- Digital Output : Optional 2 x DO
- Analog Output : Optional 0/4~20 mA
Measurement
- Voltage : 240 VLN / 415 VLL
- Frequency : 45~65 Hz
- Energy Accuracy : Class 0.5S
Environment
- Operating Temperature : -25~70 °C
- Storage Temperature : -40~85 °C
Mechanical
- Dimension : 96 x 96 x 92 mm
