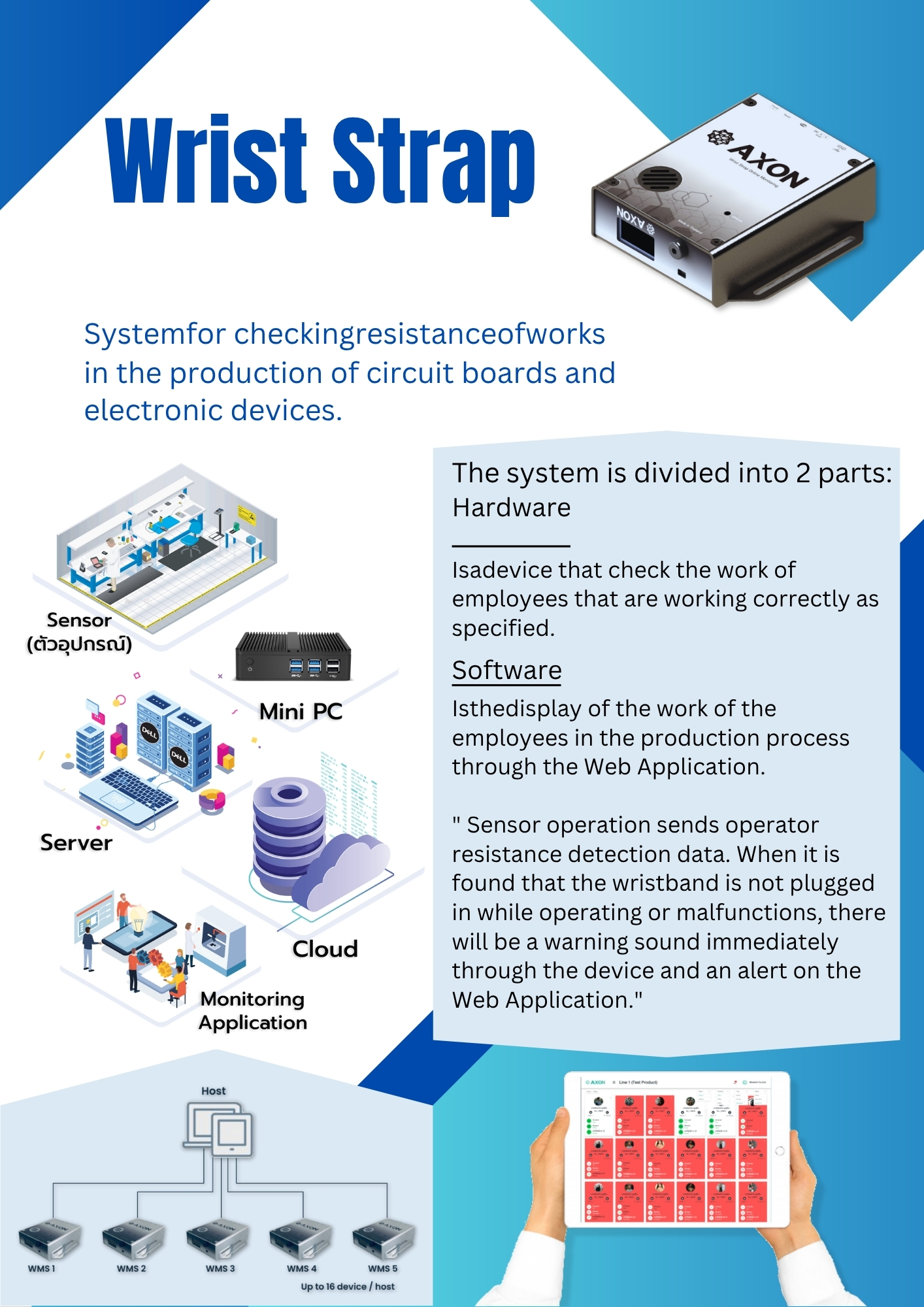

Wrist Strap Monitoring System

Input Voltage

DC 12 Volt

Operating Temperature

10°C to 42°C

Environmental

Indoor use only

Test Limits

750 kΩ to 35 MΩ (Or User define up to 500 MΩ)

Accuracy

<10% (750 kΩ – 120 MΩ)

<20% (120 MΩ – 500 MΩ)

Test Voltage

24 VDC

Grounding Test

Connected or disconnected

Port

-        Micro USB Connector (for configuration device)

-        RS485 Terminal (for monitoring system)

RS485 Communication

-        Distance up to 400 Meter

-        Slave device (Up to 16 device/1 master)

Display

-        OLED display 128x64 pixel

-        Support display Rotation 0° or 180° with software configuration

Proximity Sensor

Operators detect range up to 100 cm (support configuration)

Alarm Buzzer

-        85 dB (support configuration)

-        Support Alarm delay
