SmartLog Pro® SE ESD Results at your Fingertips

          The SmartLog Pro® SE verifies the functionality of personnel grounding equipment, logs the results, and controls access to the ESD Protected Area. All test activity is logged into a database to meet the ANSI/ESD S20.20 and IEC 61340-5-1 requirement for “Compliance verification records shall be established and maintained” and for on-going quality control purposes.


Overview







MEASURE

Verify the functionality of an operator’s Wrist Strap, ESD Footwear or Groundable Static Control Garment.

Each log entry includes operator identification, test results, resistance measurements, time stamp, temperature and humidity











VERIFY

Enhance operator accountability by automatically logging every test result.

Be in the know when an operator has a high fail rate.















CONTROL

Control access to the ESD Protected Area (EPA) using the relay terminal. Connected to an electronic door lock or turnstile to grant access only to those who have passed their pre-defined ESD tests.

Restrict access by department, shift or specific notation

Set up an alerts to be emailed to managers when operators haven't passed their ESD test after failed ESD test within defined period of time















REPORT

With the web app and daily scheduled reports you can enhance accountability, immediately identify problems while reducing logging and auditing costs.

Replace paper logs with a database to compliance verification records.






4 Ways to Identify Yourself



Proximity Reader

  • Embedded HID OMNIKEY Proximity reader

  • iCLASS® and HID Prox® ready

  • Programmable with most proximity badge formats







Numeric Keypad

  • 9-digit numeric keypad

  • Alternative operator identification if barcode/proximity card is misplaced

  • Can be disabled to enforce Barcode/Proximity scanning





Barcode Scanner

  • Embedded CCD Barcode scanner

  • Reads code 39 and 128

  • Programmable with most barcode badge symbologies





Face Recognition

  • The Face Recognition Terminal uses facial features to identify the operator and control access

  • Infrared Temperature Screening

  • Face Mask Verification


Access Control

SmartLog Pro® SE with Turnstile

Controls access to the ESD Protected Area to operators that have passed their pre-defined ESD tests and have been granted access to the area.



Access Features:

  • Control access to the ESD Protected Area

  • Records operator access and ESD test results

  • Restrict access by department, shift, or specific notation

Key Turnstile Features:

  • Motorized arm rotation

  • Field configurable for single direction or bi-directional operation

  • Configurable with pre-existing fire and safety systems

Relay Terminal

The SmartLog Pro® SE features a relay terminal that can be integrated with electronic door locks, lights, buzzers, etc. to control access to an area.

The Wiegand interface allows the operator to capture “in” result at their access control systems as well as a pass/fail result at the SmartLog Pro® SE with just one badge scan.

The SmartLog Pro® SE can be pair with a Wiegand interface so that operator can scan their proximity badge at their existing proximity reader, and:

  1. If it's a valid badge, the SmartLog Pro® SE prompts to perform an ESD test

  2. If its an invalid badge, the SmartLog Pro® SE remains idle


Software

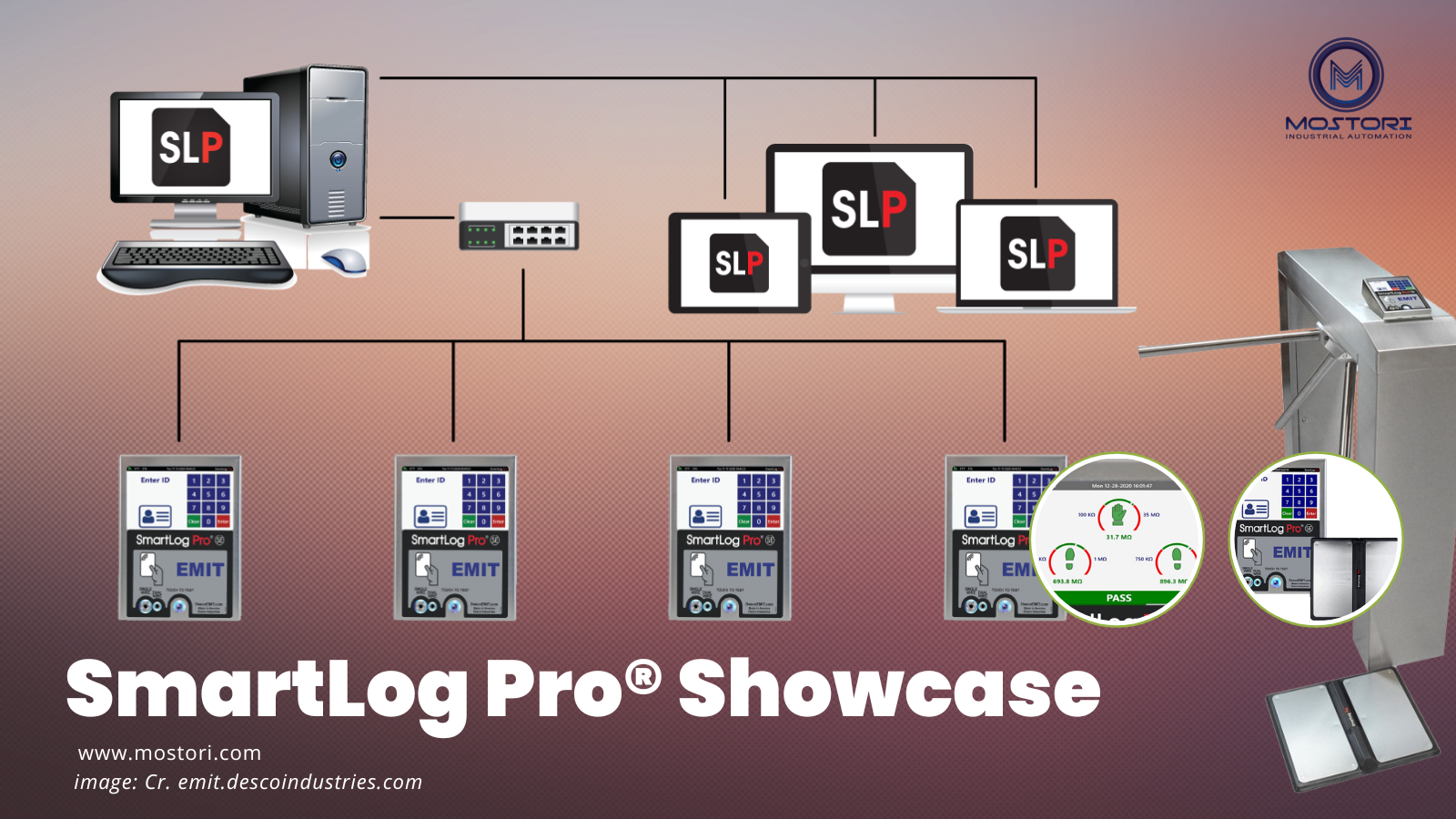

SmartLog Pro® Manager Web App

SmartLog Pro® Manager automates the collection of ESD personnel grounding tests and maintains records for a Compliance Verification Plan as required by IEC 61340-5-1 and ANSI/ESD S20.20.

The app is installed onto one server and accessed via a web browser.

It includes functions for tracking employee leave time, shift and department assignments, and ESD training accreditation.

SmartLog Pro® Manager generates automated reports that may be e-mailed to track short-term and long-term corrective actions.

Test limits and test parameters (wrist strap only, footwear only, wrist strap and footwear, etc.) may be customized with the web app to meet special requirements.

SmartLog Pro® Manager may be configured to run in English, Spanish, Japanese, Chinese (Simplified), or Turkish.


Accessories

Limit Comparator

Use to perform periodic calibration of SmartLog Pro® SE




Stand

Ready-to-use stand for SmartLog Pro® SE



Contactless Test Fixture

Allows operators to initiate tests
without touching any parts of the SmartLog Pro® SE



2.3 kg Electrode

Pair with the 50424 Limit Comparator to verify the calibration of the footwear circuit.

ESD Glove Test Fixture

Use with the SmartLog Pro® SE to test operators that wear ESD gloves or finger cots. Creates a larger test surface area allowing the path-to-ground of the operator wearing gloves or finger cots to be measured.
